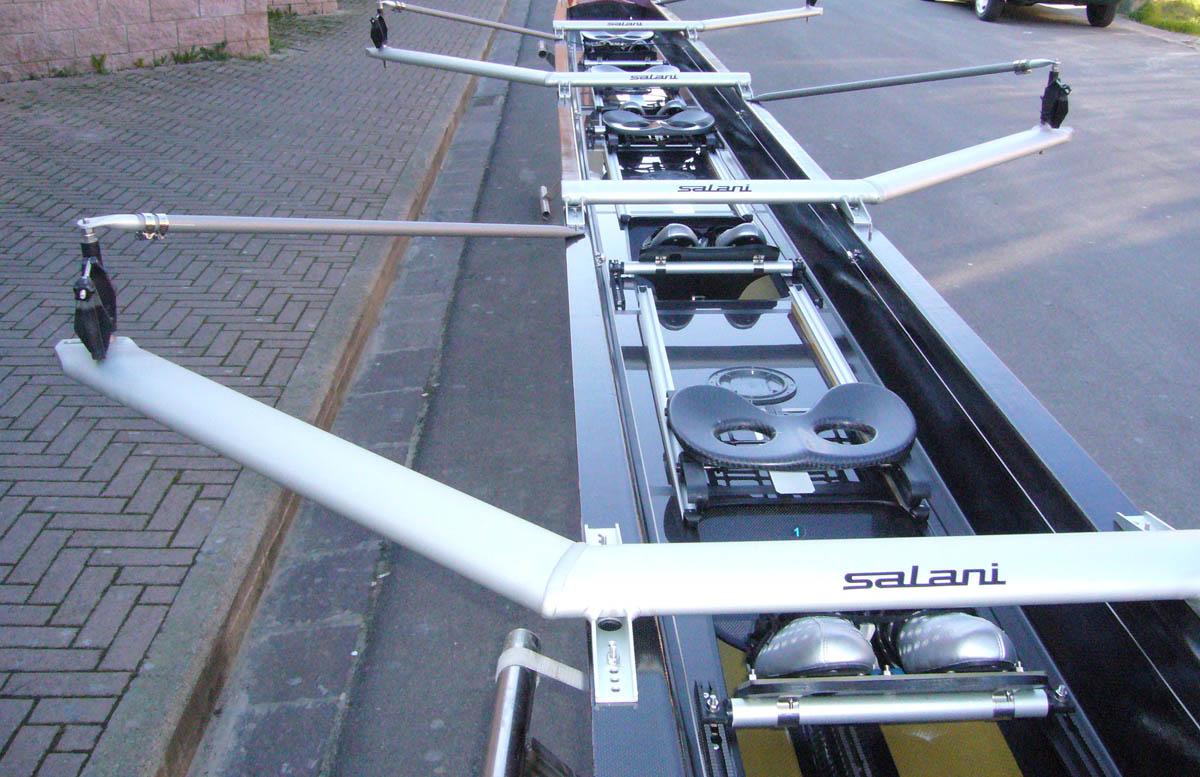

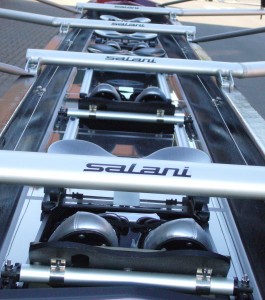

4x Convertible


Technical sheet















The hull is composed by honeycomb carbon and Kevlar textiles, placed to form a sandwich structure. All the elements are made with the autoclave.
We always look for new and sophisticated materials to improve the hull performance.
Available configuration: Traditional, Wing, Carbon and Pegaso 4X.
Standard colour: Sky-blue
On request any other colour RAL(extra charge for other colours)
Weight and norms FISA GUARANTEED.
Guaranteed for 3 years.

BoatMold numberAthletes (Kg)Length (m)Width (cm)
4X/4X-WingCarbonTaditionalPegaso
W410C410T410 75-8512,0142,3
W411C411T411  80-9012,8244,6
W413C413T413 80-9512,7243,8
W414C414T414  70-8012,1143,8
W415C415T4105  50-7511,8140,5

On request and as a special production, we also manufacture racing rowing boats with traditional internal frames and tubular strut brackets made from aluminum tubes welded together. Please specify your request, which we will be happy to process!





Wing Series


The boats that belong to series Wing are fixed with the wing-rigger in anodized aluminium.
The hull is designed without internal shoulders and has got reinforced sides where the rower discharges his strength.
The hulls and the covers of Wing collection are produced using carbon fibres, Kevlar textile and epoxy resins.
A fantastic relation between lightness and stiffness distinguishes our boats, thanks to the use of “honeycomb” textile, that also guarantees an extra hardiness of the hull.
We use epoxy resins, that are often used in aeronautical and automotive fields.
The hull and its components are subjected to catalyst processes (hot and airtight processes) that provide an excellent result in lightness and stiffness.
The internal components (ultralight carbon trucks with ball bearing chassis, rowing deck, bulkhead etc) are manufactured using prepregnated carbon, baked in autoclave.
The multilayer and carbon foot stretcher is adjustable (in height and list) and has shoes.
Weight and norms are guaranteed FISA.
Standard colour: Sky-Blue
